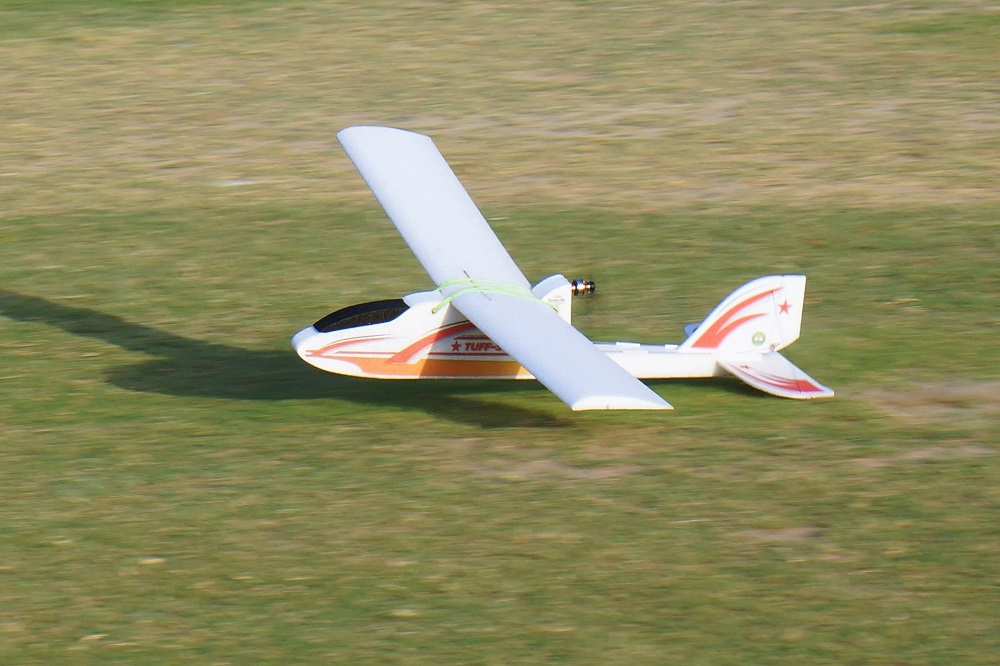

TuffStar* EPP Trainer V2
₹2,860.00 – ₹5,000.00
Single piece EPP Fuselage, this Trainer plane can take 2200mah-5000mah of Battery and can be flown as 3Ch or 4Ch . Can also take in Autopilot and FPV gear.
- Description
- FAQ
- Additional information
Description
Specifications :
- WingSpan: 1200MM
- All-Up-Weight: ~550gms
- CG Location: 60MM from Leading edge (spar location)
Recommended Equipment:
- 4-6 Channel Programmable Radio (Tx-Rx)
- 1800-2200mah 3S Lipo
- 20-30Amp Brushless ESC
- 2/4 Nos 9gms Servo
- Brushless Motor 22XX or 28XX series.
- 7-8inch propellor

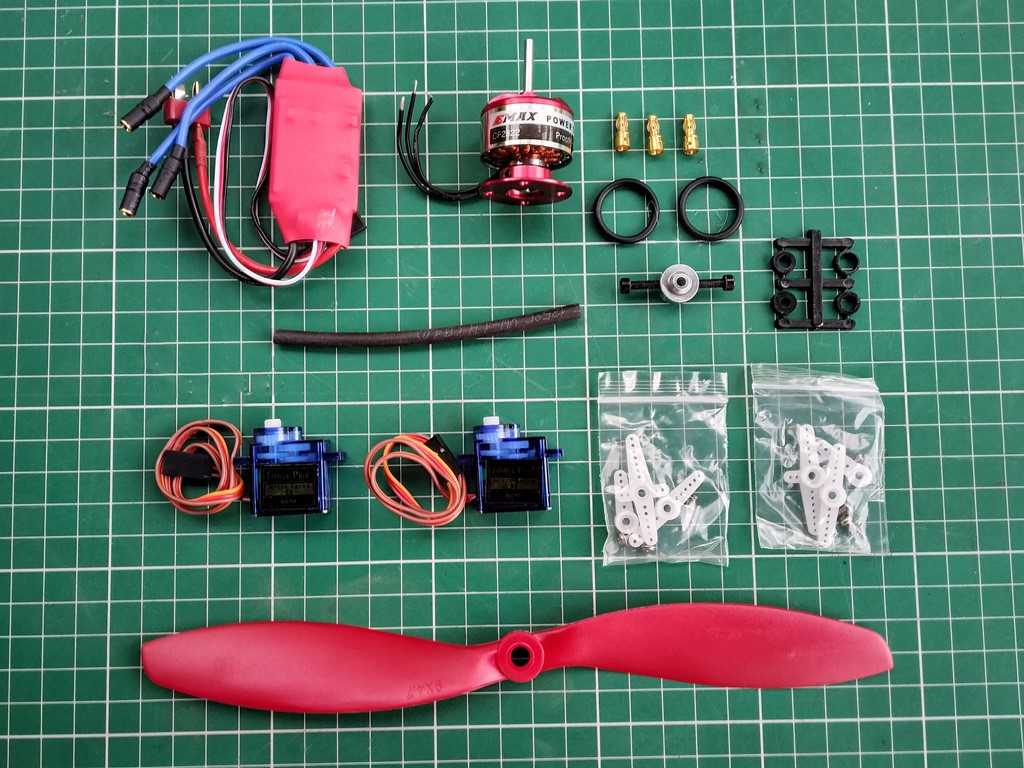

Electronics Package (optional) includes.
- 2 Nos./(4 Nos. for EPP Aileron Wing) 9 gm Servos
- 1 Nos. 30Amp Brushless ESC (Speed controller)
- 1 Nos. Emax CF2822 1200KV Brushless Motor
- 1 Nos.8×6 Propellor
- 2 Nos. 15cm Servo Extension wire
- 1 Nos. y cable(only for EPP Aileron Wing).

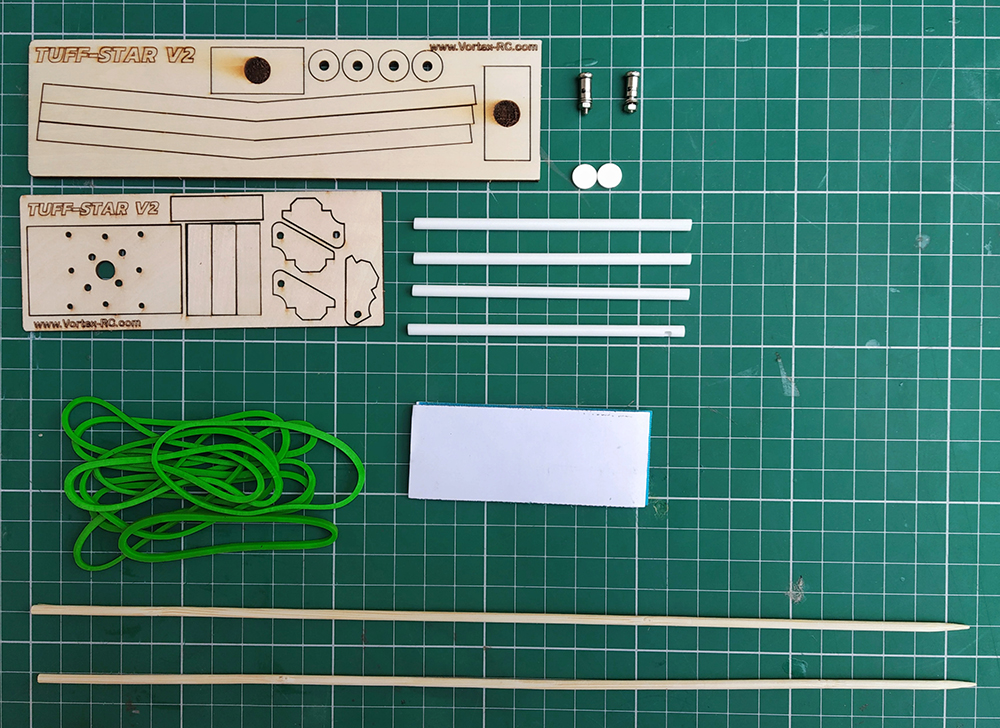

Whats Included :

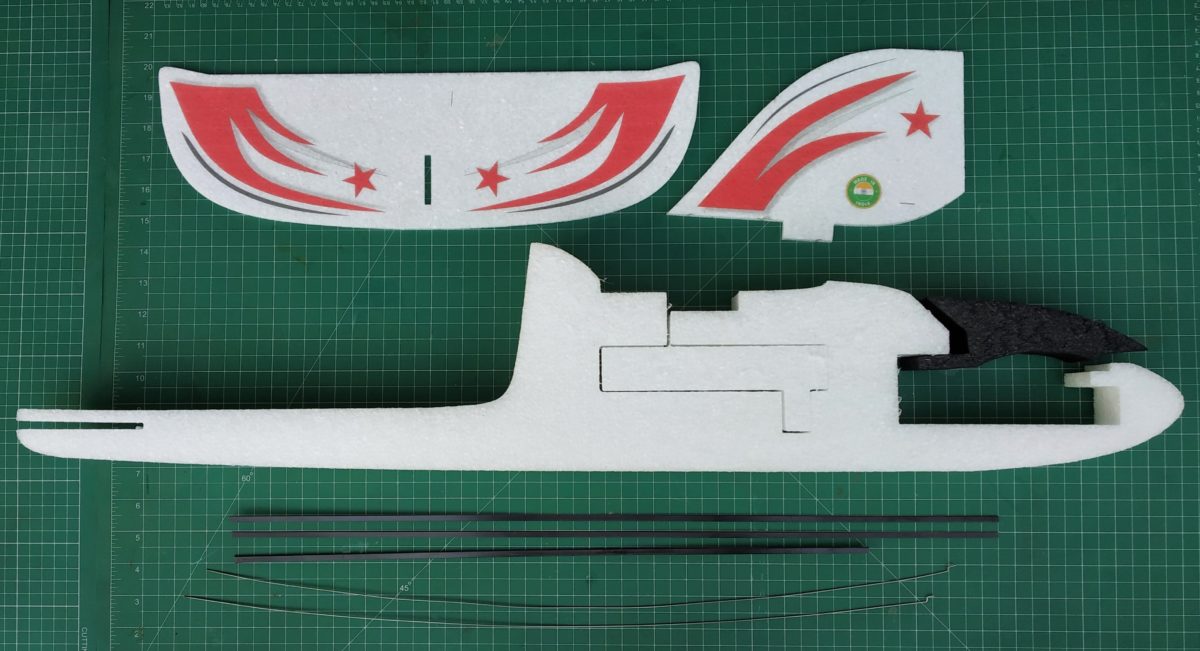

- EPP Fuselage

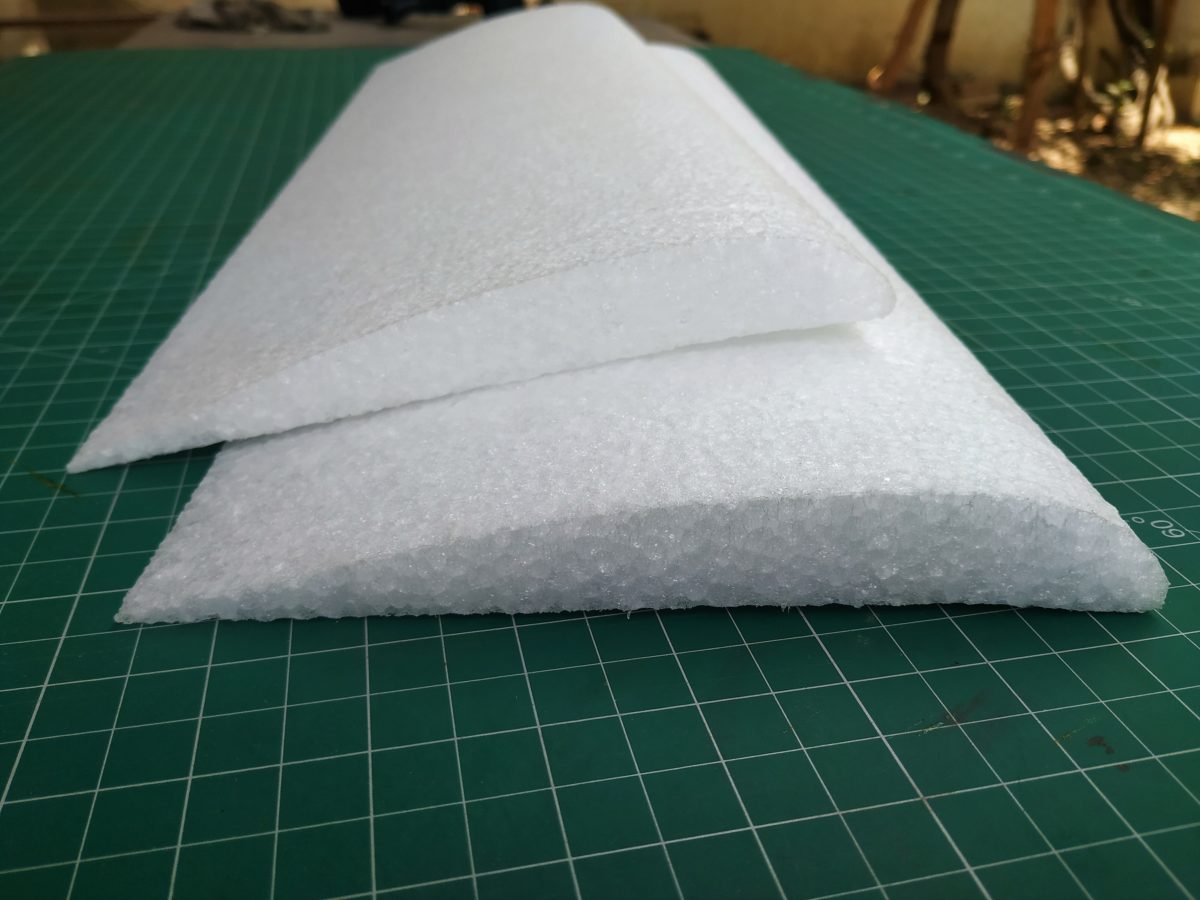

- 2X EPP Trainer wing pannels.
- EPP Canopy
- 2X EPP Printed Side Walls.
- EPP Printed Horizontal and Vertical Stabiliser.
- 2MM Laser cut Aeroply sheet.
- 3MM Laser cut Aeroply sheet.
- 2x Bamboo Skewers small.
- ~500mm 6x2MM Carbon Fiber Strip.
- 400mm 3x1MM Carbon Strip.
- 2x 250mm 2MM CF Rod.
- 2x 600MM 5×1 Carbon Strip ( Trainer Wing ).
- 2x 620mm long Pushrods.
- 2 Nos Linkage Connectors.
- Velcro
- 4x Small Pushrod Guides
- 10x Rubber Bands
- 2 Nos 8mm Round Magnets
Intermediate Wing (Optional)
- 2 Nos EPP Wing Panels
- 1 Nos 8x6mm 1000mm GlassFiber Rod
- 2 Nos 8x6mm 100mm GlassFiber
- 2 NosTapered Epp Strip for spar cover
- 2 Nos Linkage Connectors
- 2 Nos 100mm Pushrods
Kit Includes:
EPP-Aileron Wing (Optional)
Electronics Package (Optional)
Image Gallery
Additional information
| Weight | 5 kg |
|---|---|
| Wing Type | EPP-Trainer Wing, EPP-Intermediate Wing, Both Wings |
| Electronics | No Electronics, With Electronics |
| Skill Level | Beginner |
