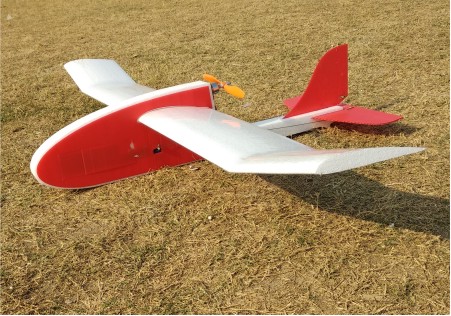

TuffStar* EPP Trainer

TuffStar* EPP Trainer

₹2,360.00 – ₹5,000.00

In stock
0 out of 5

₹2,360.00 – ₹5,000.00

Single piece EPP Fuselage, this Trainer plane can take 2200mah-5000mah of Battery and can be flown as 3Ch or 4Ch . Can also take in Autopilot and FPV gear.

SKU: FT008-1-1 Categories: ,
Clear
  • Description
  • FAQ
  • Additional information

Description

Features

  EPS CNC Cut Wings
  Replaceable Coro Side covers>

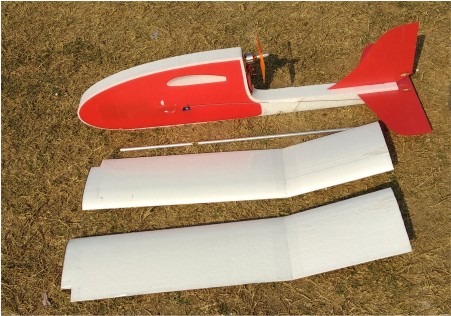

  Detachable wings
  CNC cut single piece fuselage
  3 colour choices available
  FPV and Autopilot Ready

  Lots of space in fuselage for electronics
  Choice of White or Black Fuselage
  EPP Wing Option w/ Glass Fiber Rod

Specifications :

  • WingSpan: 1500MM
  • All-Up-Weight: ~750gms
  • CG Location: 55MM from Leading edge (spar location)

Recommended Equipment:

  • 4-6 Channel Programmable Radio (Tx-Rx)
  • 2200mah 3S Lipo
  • 20-30Amp Brushless ESC
  • 2 Nos 9gms Servo
  • Brushless Motor 22XX or 28XX series.
  • 7-8inch propellor

Whats Included :

  • EPP Fuselage
  • 2 Main EPS Wing Panels.
  • 2 Polyhedral EPS Wing Tips
  • Coro Parts (4) (Stab, Fin, Left/Right Fuse Sides)
  • Laser cut Aeroply sheet
  • ~500mm 6x2MM Carbon Fiber Strip
  • Aluminium Spar ( 1000mm )
  • Pushrods 2x 600mm each.
  • 2 Nos Linkage Connectors
  • Battery Strap, Paper Knife
  • 2x Adhesive backed Lamination sheet.
  • 2x Pushrod Guides
  • 2x CF Rod10cm ea
  • 4x Rubber Bands
  • Sand Paper
  • Instructional Manual
  • Electronics Package (optional) includes.
  • 2 Nos./(4 Nos. for EPP Aileron Wing) 9 gm Servos
  • 1 Nos. 30Amp Brushless ESC (Speed controller)
  • 1 Nos. 2822/14 1400KV Brushless Motor
  • 1 Nos.8×6 Propellor
  • 1 Nos 15cm Servo Extension wire
Kit Includes:
EPP-Aileron Wing (Optional)
Electronics Package (Optional)

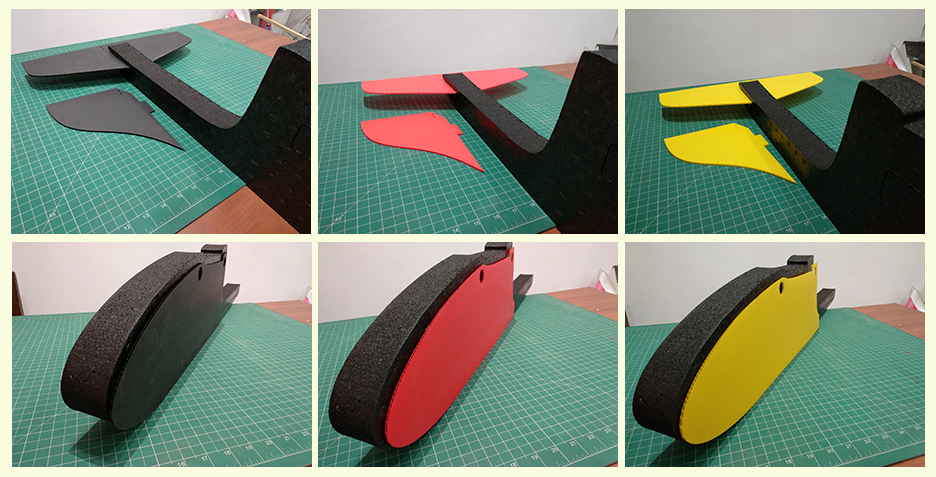

Color Choice:
Closeup Pictures:
  Elevator Servo Placement Options : Either on Tail ( for FPV/AP ) Or on Fuselage ( for light trainer airplane )
    Rudder Servo Placement Options : Either on Tail ( for FPV/AP ) Or on Fuselage ( for light trainer airplane )
  Motor, ESC Placement and Battery Location
  Vertical Fin and Rudder
  Wing Attachment Using Supplied Rubberbands
  AutoPilot Placement
  FPV Gear options
  CG Location – Right on Spar Location
Build Videos

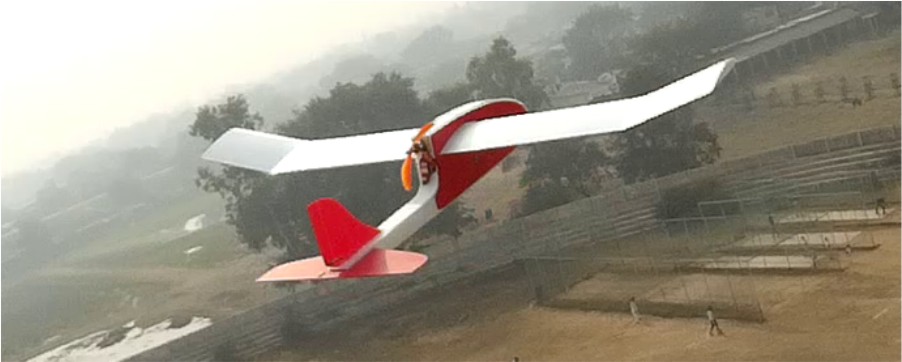

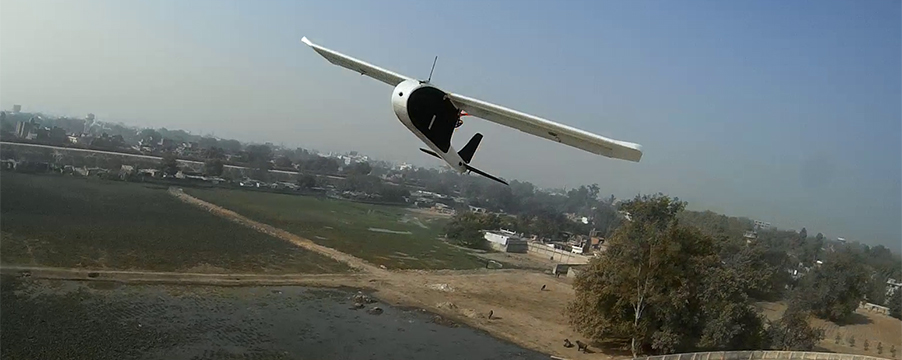

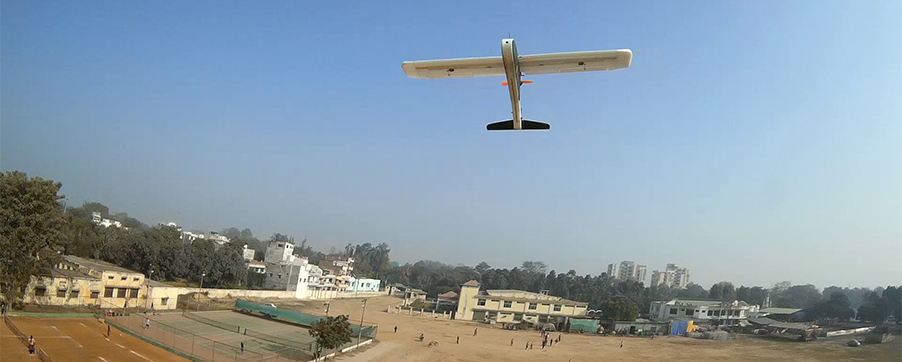

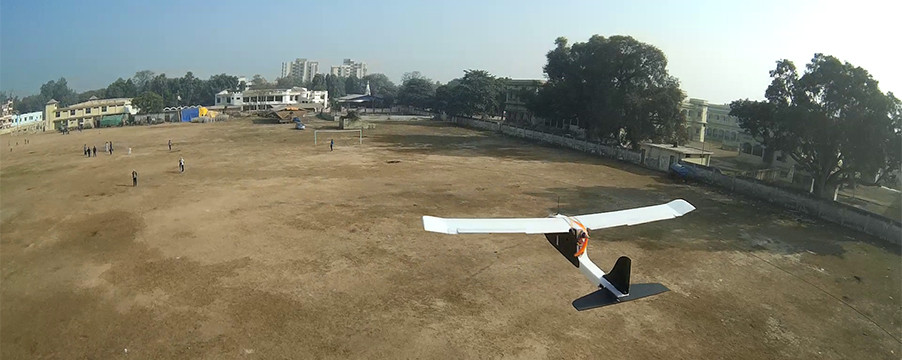

Image Gallery

  Big Battery Hatch

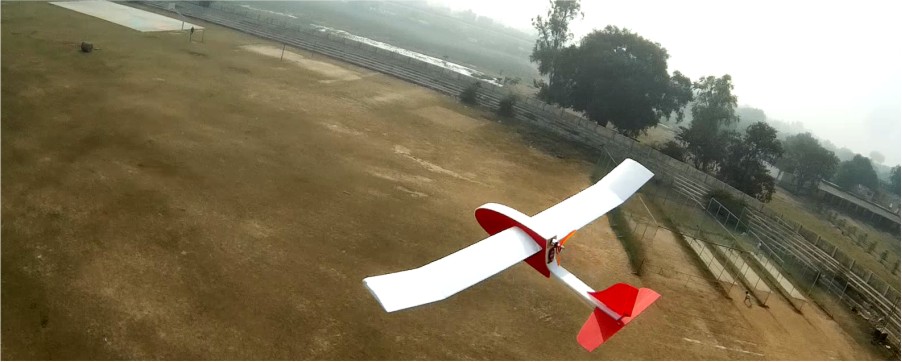

  Plane Chase
  Mobius action cam
Customer Photos:
Customer Video:

Additional information

Weight 5 kg
Wing Type

EPS-Trainer Wing, EPP-Aileron Wing, Both Wings
Electronics

No Electronics, With Electronics
