Specifications :

• WingSpan: 1645MM
• All-Up-Weight: 2500 gms
• CG Location: 20 MM back from mid panel & side panel join of wing.

Recommended Equipment:

• 4-6 Channel Programmable Radio (Tx-Rx)
• 8000-12000 mah 4S Lipo
• 70-90 Amp Brushless ESC
• 2 Nos Servo (Metal gear recommended) Min Torque 4kg-cm
• Brushless Motor 900-1200KV Min 700Watts.
• 9-11 inch Propellor

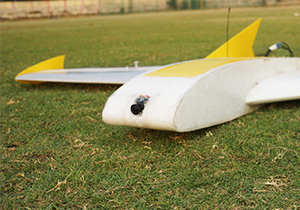

• FPV Equipment ( Optional )
• Autopilot Equipment ( Optional )

Building Tools:

• Hot Glue Gun and Glue Sticks
• Cyanoacrylate Glue ( FeviKwik etc )
• Gorilla Glue
• Screwdrivers & Allen Key
• Clear Packing Tape
• An Iron ( For laminating )
• Soldering Iron and Solder Wire
• Ruler , Pen and a Flat Working Table

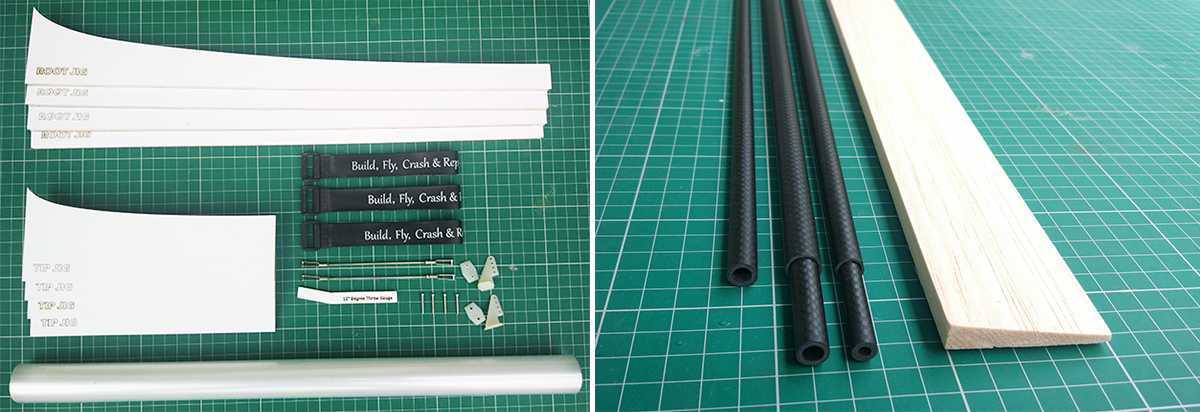

Whats Included :

       EPP Foam Part’s

• 2 Main EPP Wing Panels in Wing Beds
• 2 Shoulder EPP Wing Panels in Wing Beds
• 1 Center Fuselage EPP Wing Panel

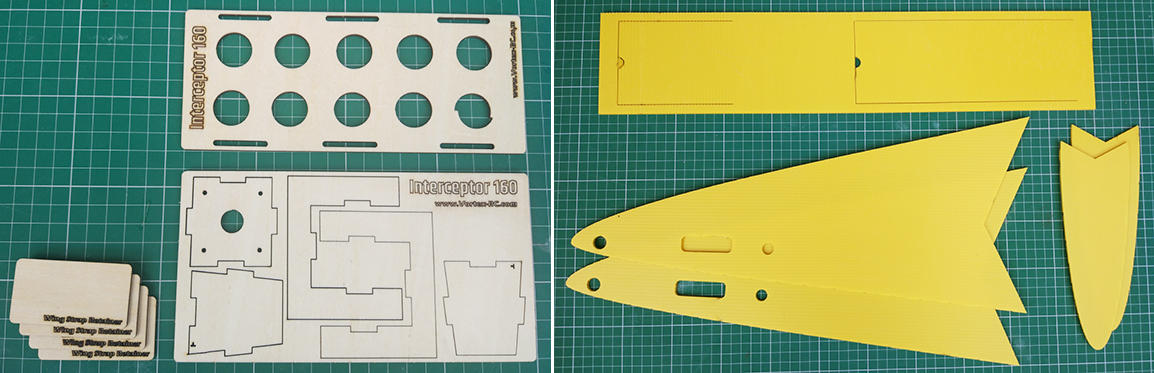

  Aeroply Part’s

• 3MM Laser Cut Aeroply Motor Mount

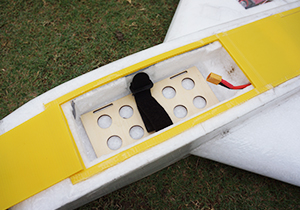

• 3MM Laser Cut Aeroply Battery Tray
• 2MM Laser Cut Aeroply Wing Strap retainers ( 4Pcs )

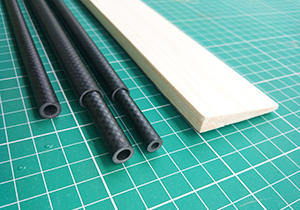

  Carbon Fiber Part’s

• 12x10MM 1 Meter Length Roll Wrapped Carbon Fiber Spar
• 10x6MM 1 Meter Length Roll Wrapped Carbon Fiber Spar
• 10x8MM 1 Meter Length Roll Wrapped Carbon Fiber Spar
• 8x4MM 1 Meter Length Roll Wrapped Carbon Fiber Spar
• 2 Pcs 10x8MM 40Cm Length Roll Wrapped Carbon Fiber Spar

  Corrugated plastic Part’s

• Corrugated plastic Winglets (2 pcs)
• Corrugated plastic Fuselage Cover
• Corrugated plastic Winglets

  Lamination Roll

• 1.5ft x 15ft 3 Mil Lamination Film.

  Battery Strap’s

• 220MM Non-Slip Battery Straps for wing (2Pcs)
• Non Slip Main Battery Strap 300mm

  Alphaboard Part’s

• Root Jigs 4 Pcs Alphaboard
• Tip Jigs 4 Pcs Alphaboard
• 14 degree Elevon Throw Gauge

  Elevon Part’s

• 36″ Balsa Elevon
• 2 sets 95 Threaded Steel Pushrods with 2 Steel Clevis ( and nuts )
• 2 Sets Nylon Control Horns with 2 screws each.
