Specifications :

• WingSpan: 1050MM
• All-Up-Weight: ~700 gms
• CG Location: 20 MM back from mid panel & side panel join of wing.

Recommended Equipment:

• 4-6 Channel Programmable Radio (Tx-Rx)
• 2200-2700 mah 3S Lipo
• 30-40 Amp Brushless ESC
• 2 Nos 9gms Servo (Metal gear recommended)
• Brushless Motor 1400-4000KV
• 4-8 inch Propellor

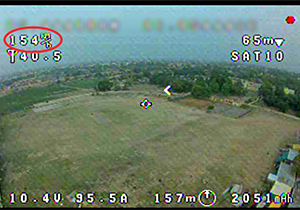

• FPV Equipment ( Optional )

Building Tools:

• Hot Glue Gun and Glue Sticks
• Cyanoacrylate Glue ( FeviKwik etc )
• Screwdrivers & Allen Key
• Clear Packing Tape
• An Iron ( For laminating )
• Soldering Iron and Solder Wire
• Ruler , Pen and a Flat Working Table

Whats Included :

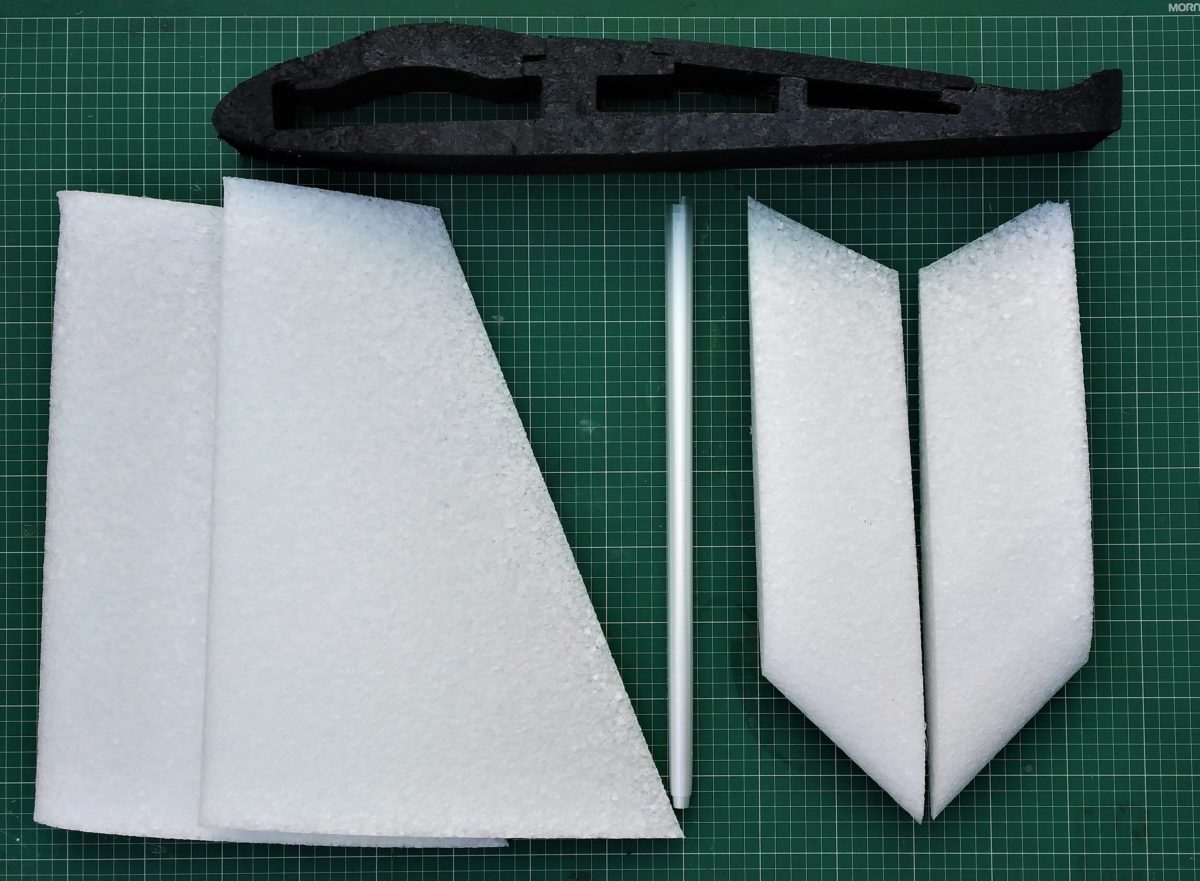

          EPP Foam Part’s :

• 1 Nos.  EPP Foam fuselage
• 2 Nos. EPP Mid Wing Panels
• 2 Nos. EPP main Wing Panels
• 2 Nos. EPP Canopy
• 6 Nos. EPP Winglets

  Carbon Fiber Part’s :

• 1000 mm 5x1MM Carbon Fiber Strip
• 500mm 5*1 Carbon Fiber  Strip

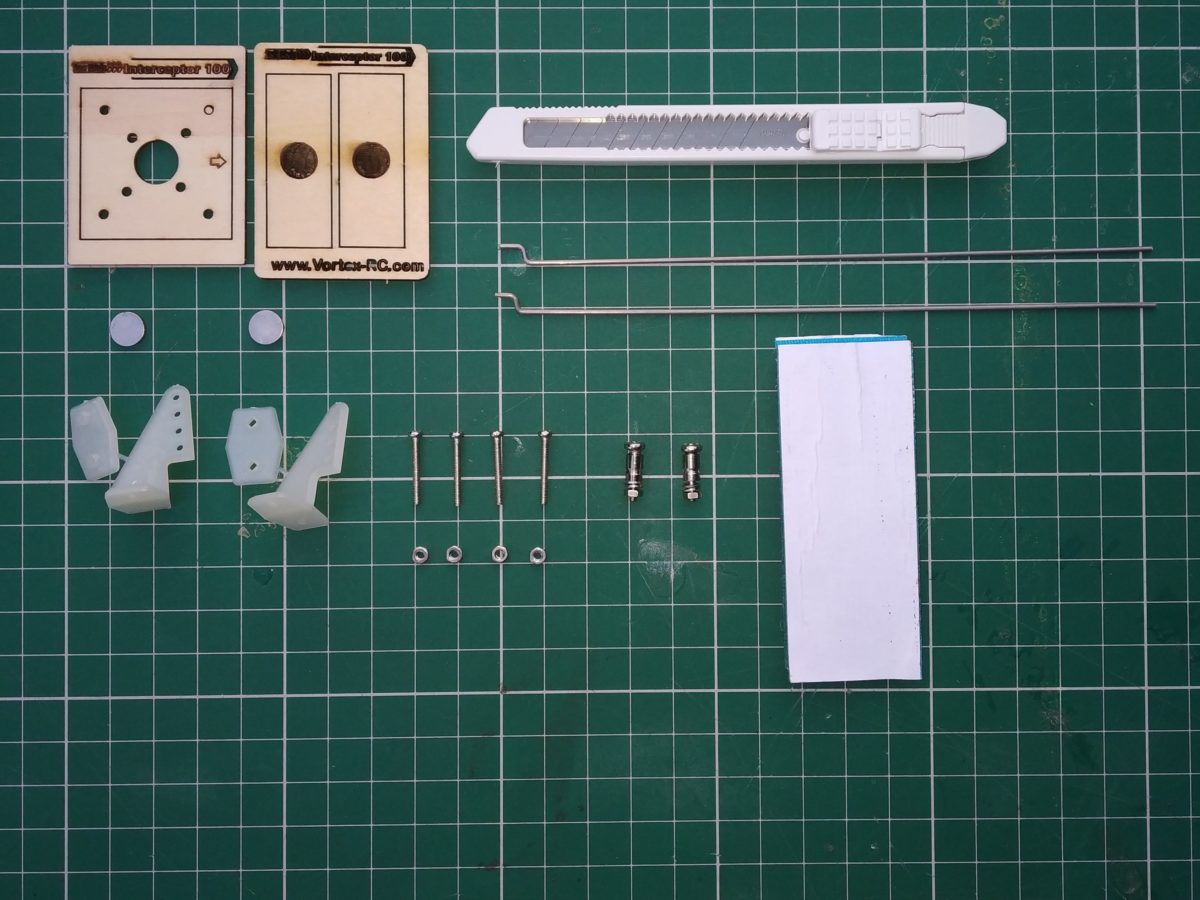

  Part Package :

• 2MM Laser Cut Aeroply Motor Mount
• 3MM Laser Cut Aeroply magnet holder plate
• 1.0ft x 10ft 1.7 Mil Lamination Film.
• 2 Nos ~150mm Pushrods
• 2 Nos. Nylon control horns with back plate
• 4 Nos. M2 x 15mm Philips head bolts & Nuts
• 2 Nos. Linkage Connectors
• 2 Nos. 8mm roun magnet.
• Velcro & Paper Knife
• Balsa Elevons Package (Optional)
• 2 Nos. 450 MM (18″) long Balsa Elevons
• 2 Nos. 75 MM long Threaded push rod.
• 4 Nos. Steel Clevises
• 2 Nos. Nylon control horns with back plate.
• 4 Nos. M2 x 15mm Philips head bolts
• Electronics Package (Optional) includes.
• 2 Nos. 9 gm Metal Gear Servos
• 1 Nos. 30Amp Brushless ESC (Speed controller)
• 1 Nos. A2212/10T 1400KV Brushless Motor
• 1 Nos. 9×5 Propellor
• 2 Nos 15cm Servo Extension wire
