FT-Spear
₹2,199.00 – ₹6,199.00
The FT_Spear is a versatile flying wing to fly with a large central bay that offers lots of space to hold batteries, FPV gear and all your electronics. The plane is built of durable and strong FliteBoard PRO, and is very easy to build and flies just awesome.
- Description
- FAQ
- Additional information
Description
FT-Spear
The FT_Spear is a versatile flying wing to fly with a large central bay that offers lots of space to hold batteries, FPV gear and all your electronics. The plane is built of durable and strong FliteBoard PRO, and is very easy to build and flies just awesome.
Specifications :
- AUW: 850 gms
- Weight Without Battery: 600gms
- Wingspan: 41 inches (1041mm)
- Length: 20in/500mm
- CG Location: 76-89mm in front of firewall
- Control Throws: Elevons: 160 EXPO: 300
Recommended Equipment:
- Motor: 1400kv Motor
- ESC: 30 amp
- Battery: 2200-3300 mAH 3s
- Servos: (2) 9 gram servos
- Prop: 8×4.7 / 9 X 4.7 Pusher
Whats Included :
- Fliteboard Pro (6 Nos)
- Aeroply Parts
- Motor Mount
- Control Horns (2)
- Camera Pod Parts (4)
- Canopy Lock sets (4Pcs)
- Spar
- Pushrods ( 2pcs 20cm each)
- Pushrod Connectors (2)
- Zipties (4)
- Velcro
- Paper knife
- Decals
- Data Sheet
FT Spear | Flite Test
FT Spear – BUILD | Flite Test
Useful Links
Expert Advice
Keep the speed up when flying this airplane. Fly it low, fly it fast, buzz around and have some fun ! Fly around with friends or chase them around with a simple FPV setup. This plane is just too much fun !
This kit has been based on the Flite Test plans freely available. Several modifications have been made to the original plans to suit the materials available to get the best performance/balance. For more information please read up here :
The standard kit contains Laser Cut Sheets and hardware for assembling the airframe only. You will need the electronics pack + radio equipment + battery/charger to fly this airplane.
FliteBoard Pro: Sheet A
FliteBoard Pro: Sheet B & Sheet C
FliteBoard Pro: Sheet D
FliteBoard Pro: Sheet E
FliteBoard Pro: Sheet F
Decals

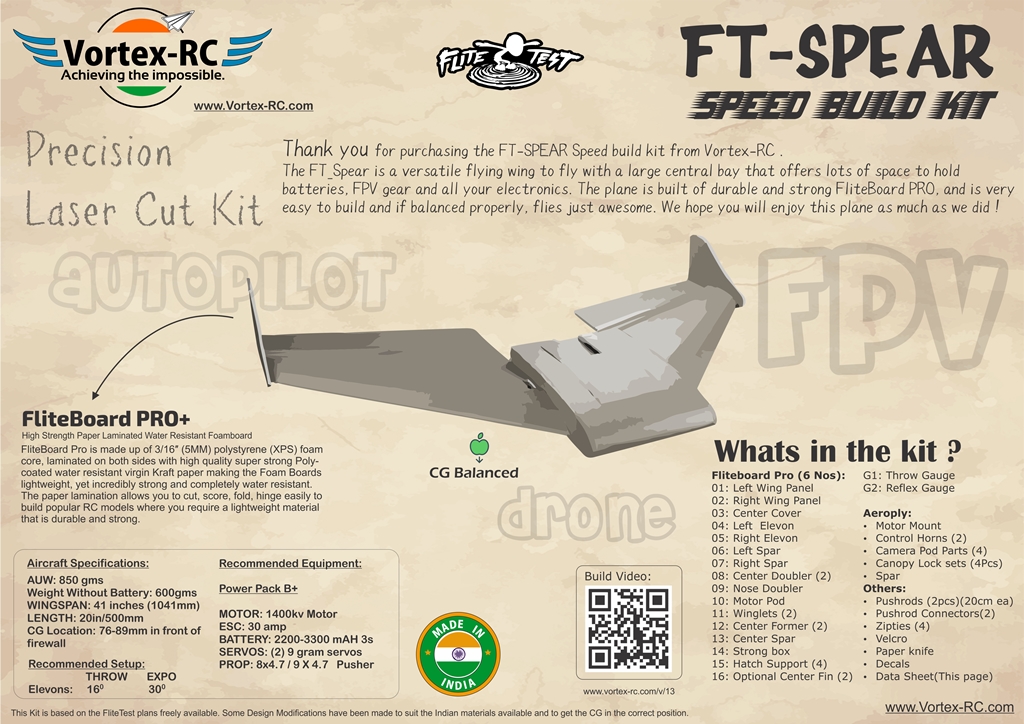

Datasheet
We want the kits to reach you in perfect condition. Laser cut Foamboard sheets are first shrink-wrapped together . Then the Sheet pack + accessories are sealed in a poly bag. Which is further bubble wrapped, which then is packed in a strong 5-ply corrugated box. Then the whole box is put into another 5 ply box to give it maximum safety.

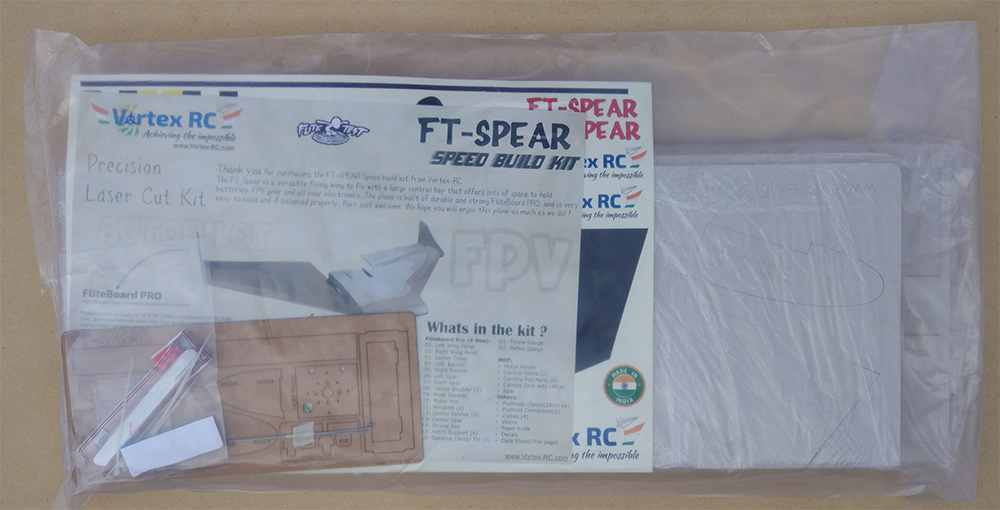

Shrink Wrapped and sealed in plastic bag.

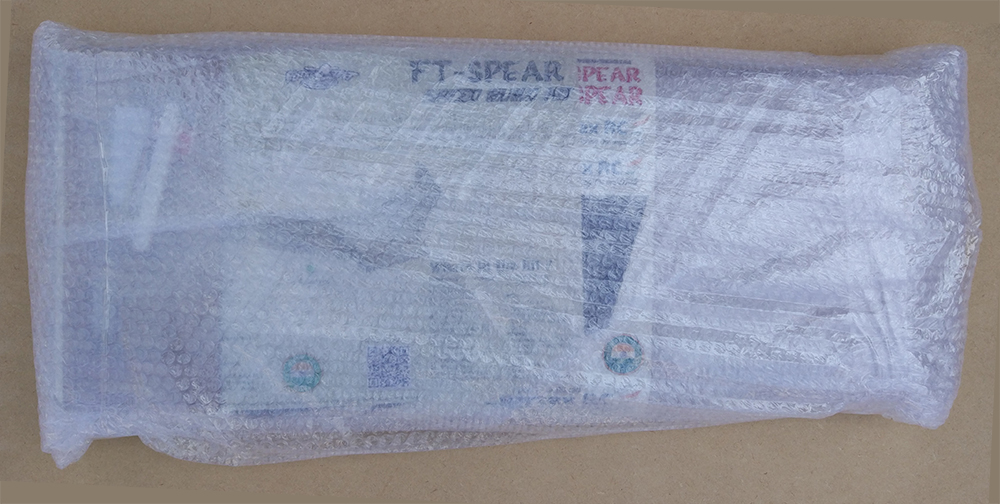

Bubble wrapped for added cushioning.
Optional Power Pack B+ Includes
- 1 Nos. Turnigy D2826-10 1400kV Brushless Outrunner Motor
- 1 Nos. Hobbyking F-30A 30Amp Brushless Speed Controller
(2S-4S) with 5V 3A BEC
- 4 Nos. TowerPro SG90 9Gm Servos.
- 1 Pair (2Pcs) Gemfan 8×4.5 Slow Fly Propellor
- 2 Pcs 15Cm Universal Servo Extensions
- 2 Pcs 30Cm Universal Servo Extensions
- 2 Pcs 50Cm Universal Servo Extensions
- 1 Pcs. 15Cm Universal Servo Y Cable
- 1 Pair (2Pcs) Male/Female XT60 Connectors
- 3 Pcs. Female Bullet Connectors
- 4MM Heatshrink Tube approx 10 Cm. Misc Colours.
Specifications
HobbyKing F-30A 30AMP Esc:
- Constant Current: 30A
- Burst Current: 40A
- Battery: 2-4S Lipoly / 5-12s NiXX
- BEC: 5v / 3A
- Motor Type: Sensorless Brushless
- Size: 54 x 26 11mm
- Weight: 32g
- Programming Functions:
- Battery Type: Lipo /NiXX
- Brake: On / Off
- Voltage Protection: Low / Mid / High
- Protection mode: Reduce power / Cut off power
- Timing: Auto / High / Low
- Startup: Fast / Normal / Soft
- PWM Frequency: 8k / 16k
- Helicopter mode: Off / 5sec / 15sec (Start up delay)
Turnigy D2826-10 1400KV Motor
- Rpm/V: 1400kv
- Shaft: 3.17mm
- Voltage: 2S~3S (7.4v to 11.1v)
- Weight: 50g
- Watts: 205w
- Max Current: 21A
- ESC: 40A
- Suggested Prop: 7×4(3S) ~ 9×4.7 (2S)
- Mounting Hole Bolt Circle: 16mm or 19mm
- Manual Link : https://hobbyking.com/media/file/811103388X7478X20.pdf
Customer Photo & Video
Dr. Abhishek
Additional information
| Weight | 3.2 kg |
|---|---|
| Power Pack Kit | Standard Kit without Power Pack, Power Pack B+ |
