FT- Baby Blender

0 out of 5

₹2,299.00 – ₹6,299.00

SKU: FT002 Category: Laser Cut DIY RC Airplane Kits

Description
FAQ
Additional information

Description

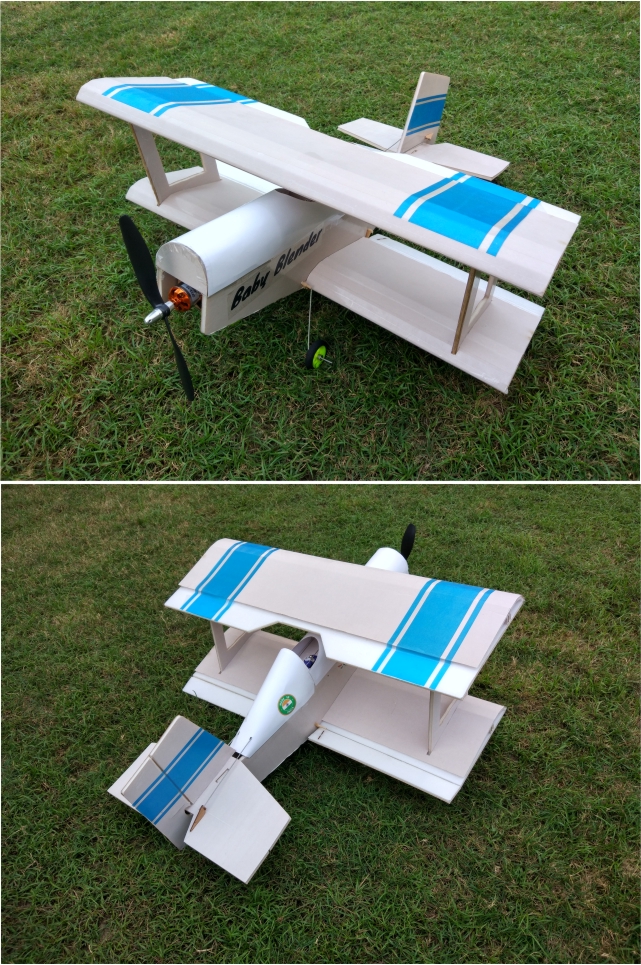

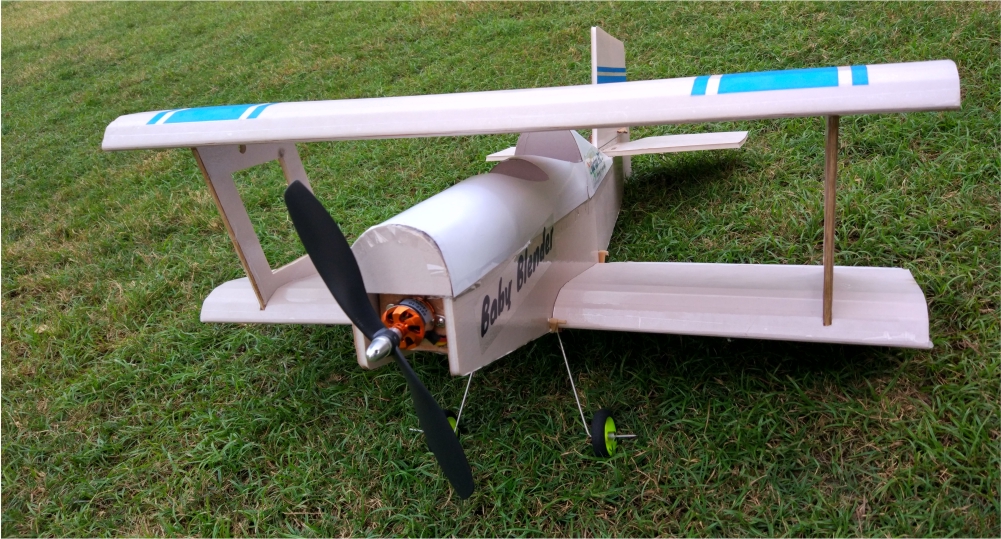

FT-Baby Blender

The Baby Blender Swappable is an excellent transition into four channel flying and more advanced building techniques. With gentle stall characteristics and a wide speed envelope, the Baby Blender will enable you to experience all the benefits of four channel flight. Tight loops, rolls, hammerheads, snap rolls, inverted, and even high alpha are all possible with this design. The Baby Blender will quickly take away your intimidation of flying a four channel biplane, and take you back to your childhood when the only limitation was the lead in your pencil and the size of your paper.

Specifications :

AUW: 700gms
Weight Without Battery: 600gms
Wingspan: 24in/610mm
Length: 25in/640mm
CG Location: 82mm from the leading edge of the TOP wing
Control Throws: Elevons: 16⁰ EXPO: 30⁰

Recommended Equipment:

Motor: Min Thrust 800gms.
ESC: 30 amp
Battery: 2200 mAH 3s
Servos: (4-6) 9 gram servos
Prop: 8×4.5-9×6

Whats Included :

Laser Cut Fliteboard Pro Sheets (3 Nos)
MDF Parts
- Motor Mount
- Control Horns (4)
- Gear reinforcement strip
Pushrods (4pcs)(32cm,40cm, 10cmx2)
Pushrod Connectors (4)
Landing Gear Wire 15 inch.
Wheels (2Pcs)
Wheel Collars (4)
Rubber Bands (4)
Bamboo Skewers (3 Short)

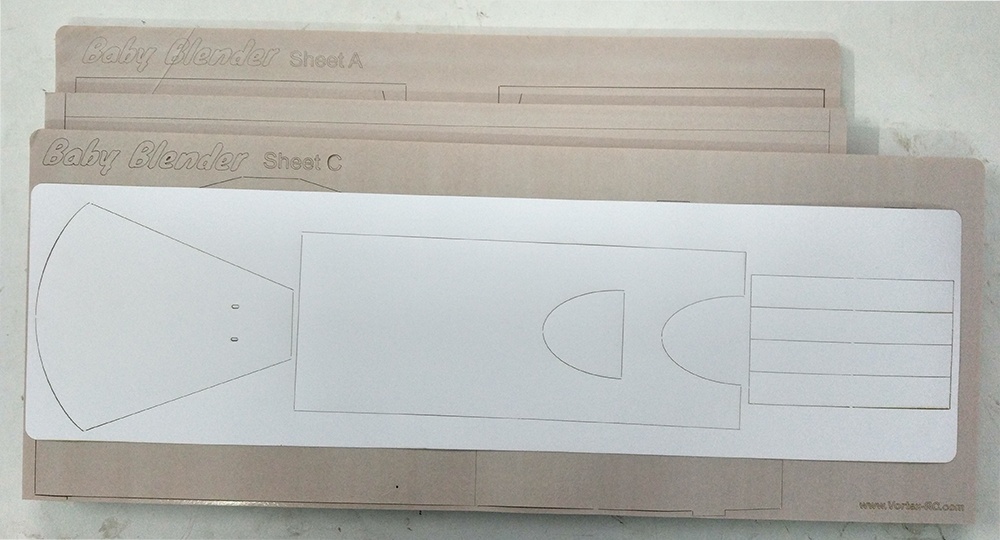

Posterboard (Nose, Rear Fuse, 4x Wing Tip Covers)
Velcro
Paper knife
Decals (2 Sheets)
Data Sheet

FT Baby Blender | Flite Test

FT Baby Blender – BUILD Video

Useful Links

Expert Advice

Keep the speed up when flying this airplane. Fly it low, fly it fast, buzz around and have some fun ! Fly around with friends or chase them around with a simple FPV setup. This plane is just too much fun !

This kit has been based on the Flite Test plans freely available. Several modifications have been made to the original plans to suit the materials available to get the best performance/balance. For more information please read up here :

Kit Includes:

FliteBoard Pro Sheets:

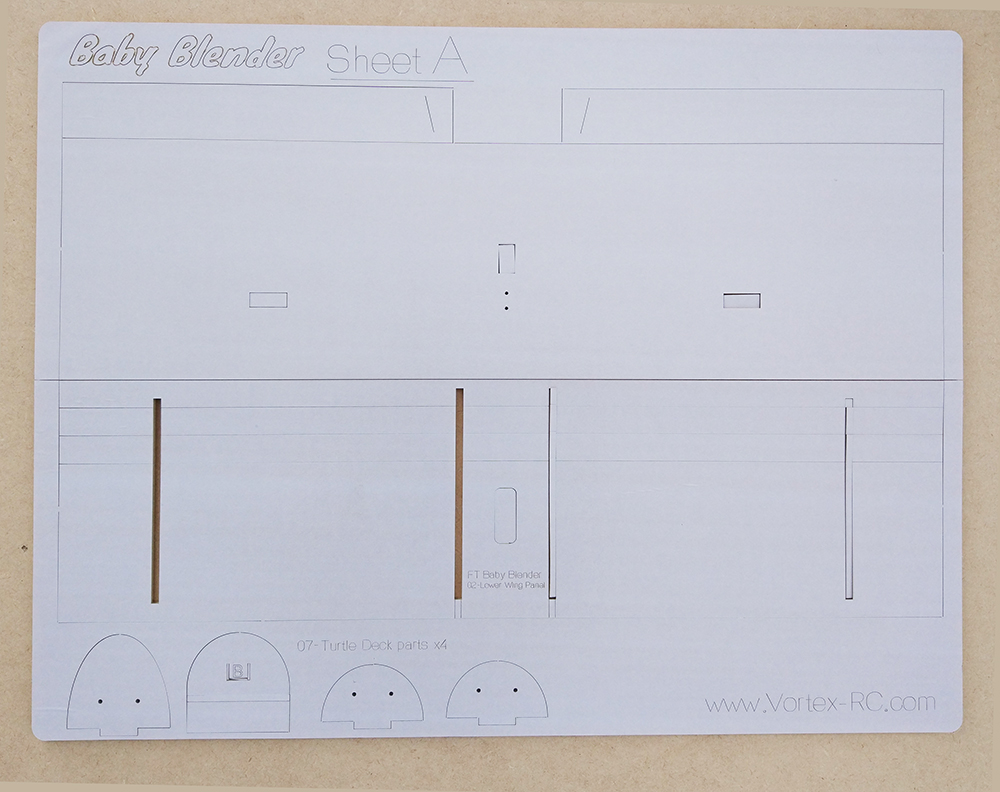

FliteBoard Pro: Sheet A

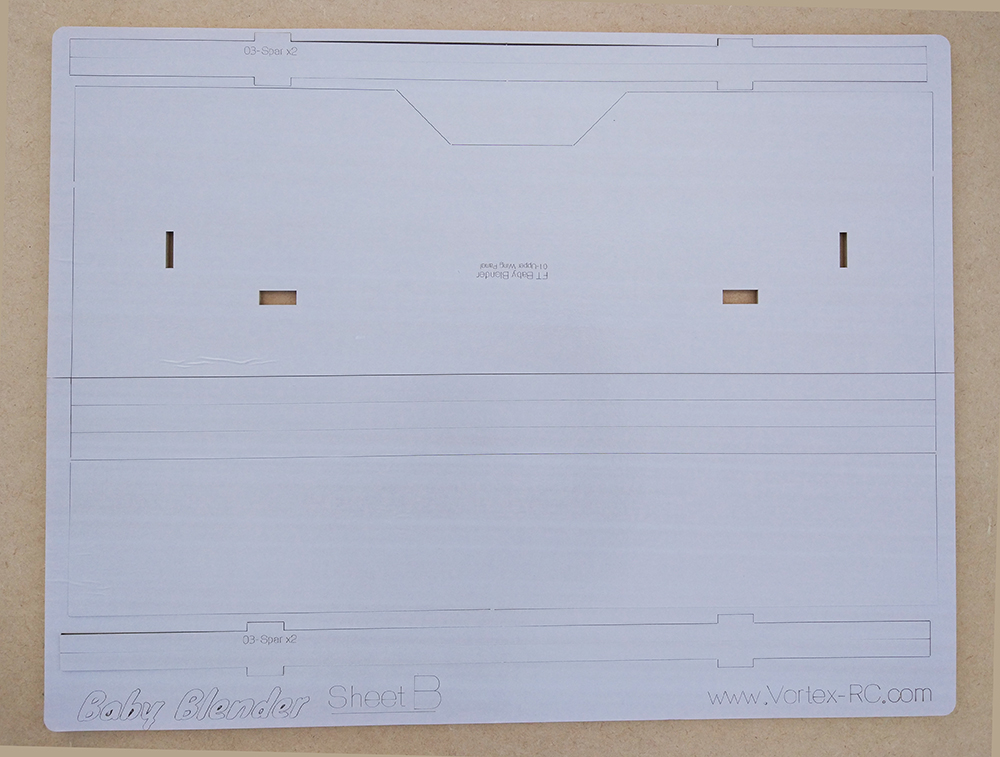

FliteBoard Pro: Sheet B

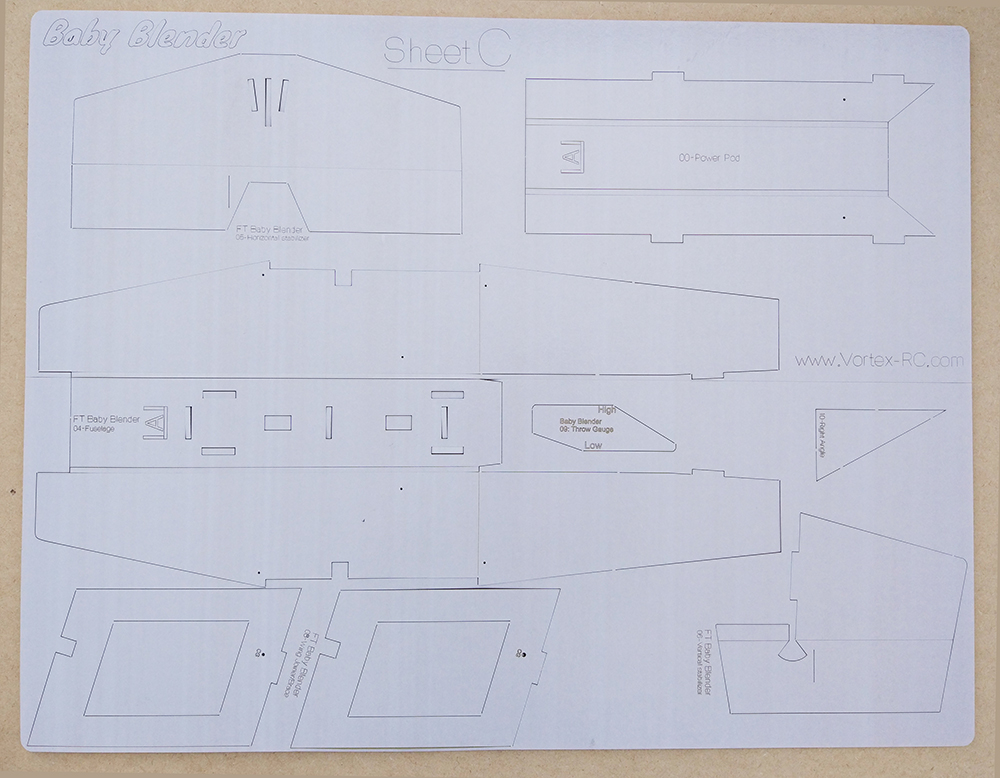

FliteBoard Pro: Sheet C

Kit accessories:

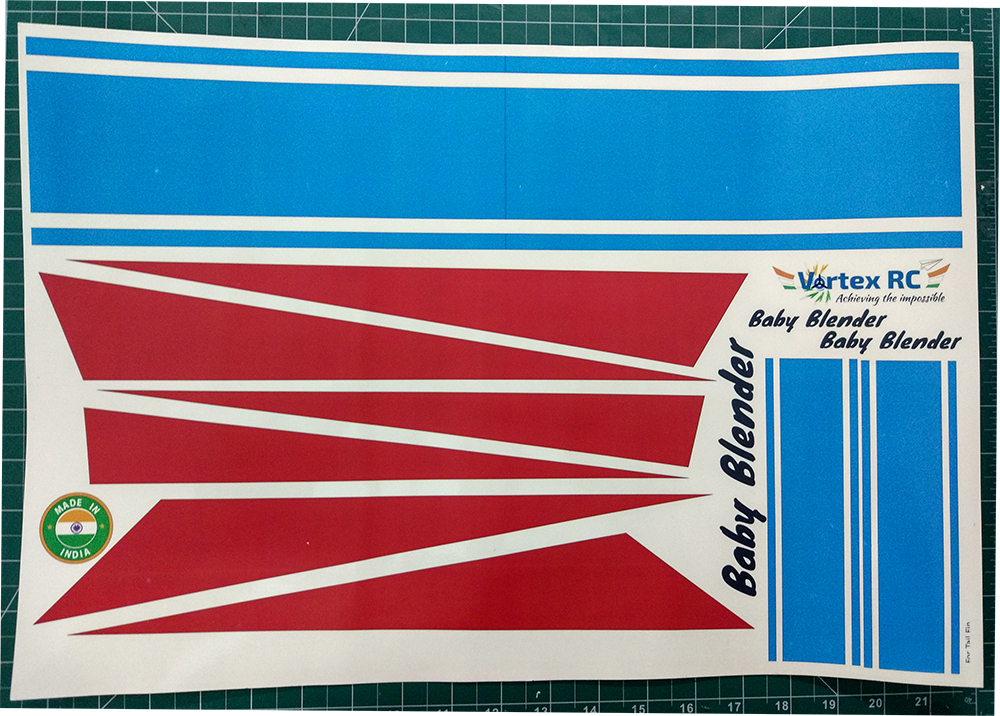

Decals

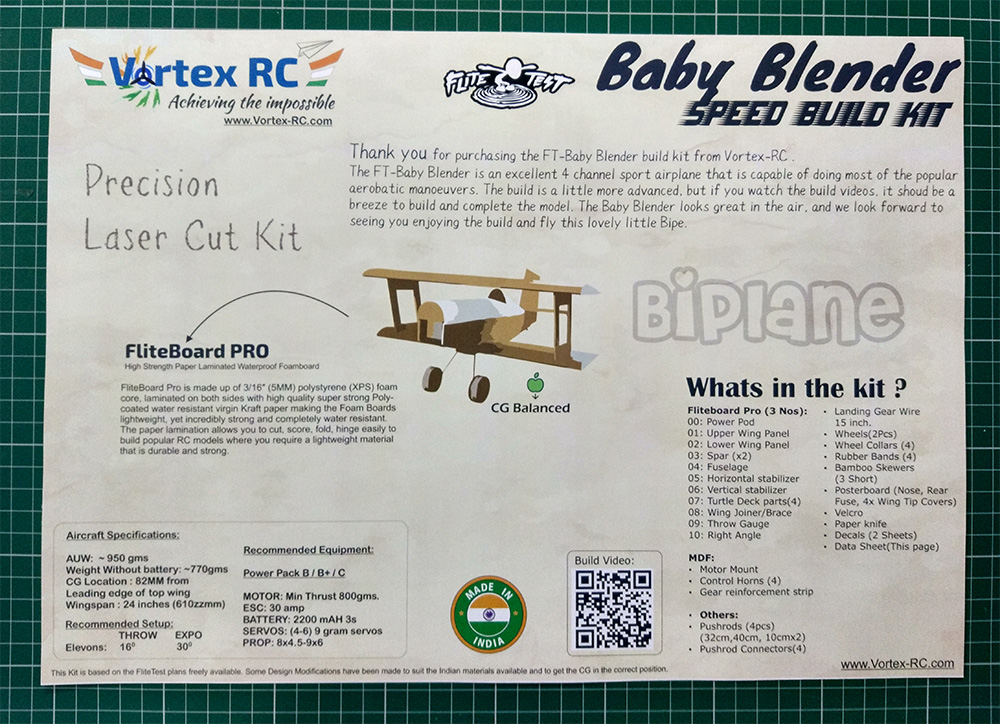

Datasheet

Packaging details:

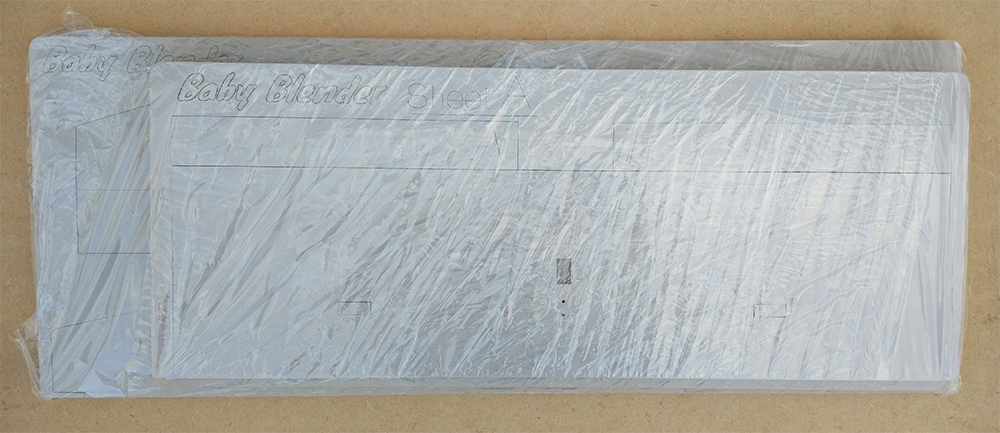

We want the kits to reach you in perfect condition. Laser cut Foamboard sheets are first shrink-wrapped together . Then the Sheet pack + accessories are sealed in a poly bag. Which is further bubble wrapped, which then is packed in a strong 5-ply corrugated box. Then the whole box is put into another 5 ply box to give it maximum safety.

Shrink Wrapped and sealed in plastic bag.Shrink Wrapped and sealed in plastic bag.
