FT-22 Raptor Speed Build Kit

FT-22 Raptor Speed Build Kit

₹1,650.00 – ₹5,650.00

In stock
0 out of 5

₹1,650.00 – ₹5,650.00

The FT-22 Raptor is a fun flyer RC plane that both beginners and advanced pilots can enjoy. With the sleek look of the F-22  and it’s excessive elevon control surface throws, the FT-22 is actually a very forgiving platform. Included decals in patriotic theme adds colour and gives life to the airplane.

SKU: FT009 Category:
Clear
  • Description
  • FAQ
  • Additional information

Description

FT-22 Raptor

ft-22-1
ft-22-1
ft-22-4
ft-22
mobile-three-pic-ft-22



The FT-22 Raptor is a fun flyer that both beginners and advanced pilots can enjoy together. With the sleek look of the F-22 and it’s excessive elevon control surface throws, the FT-22 Raptor is actually a very forgiving platform that we would even go as far to say that it would be a great first plane/trainer.

We have several small modifications and improvements to the original plans. Instead of the Posterboard used originally by FliteTest, we have used a more durable ABS sheet, and the nose has been extended slightly to help balance the plane properly. Included decals dress up the plane nicely in Indian Tricolour theme and looks super cool on the field.

Specifications :

  • AUW: 450gms
  • Weight Without Battery: 350gms
  • Wing Span: 25.5in/650mm
  • Length: 35in/890mm
  • CG Location: 400mm from the nose
  • Control Throws: Elevons: 200 – 400 EXPO: 300

Recommended Equipment:

  • Motor: 1400kv Motor
  • ESC: 20-30 amp
  • Battery: 1000- 1300 mAH 3s
  • Servos: (2) 9 gram servos
  • Prop: 8×4.7 / 9 X 4.7

Whats Included :

  • Fliteboard Pro (3 Nos)
  • Aeroply Parts
    • Motor Mount
    • Control Horns (4)
  • Pushrods (2pcs) ~29cm ea.
  • Pushrod Connectors (2)
  • Velcro
  • Paper knife
  • Decals
  • Data Sheet
  • ABS Canopy cover

FT-22 Raptor | Flite Test

FT-22 Raptor – BUILD | Flite Test

Useful Links

Expert Advice

As in any flying wing, due ot the needed reflex, there is a very slight uptrim needed for the airplane to fly straight. This plane really flies down to a crawl and with its nose-high attitude looks a stunner . Enjoy !

This kit has been based on the Flite Test plans freely available. Several modifications have been made to the original plans to suit the materials available to get the best performance/balance. For more information please click here to read.

Kit Includes:

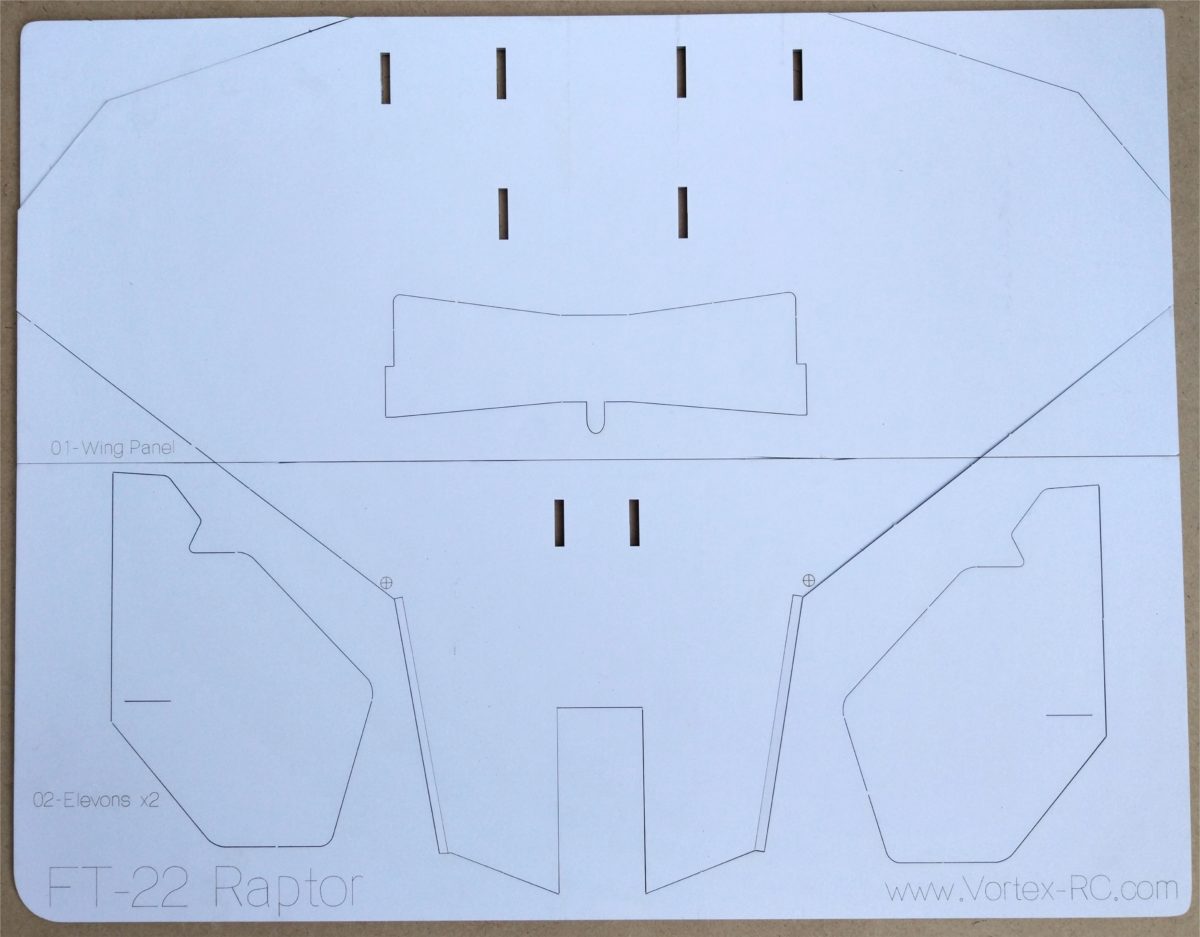

FliteBoard Pro Sheets:

Kit Accessories

Datasheet

Packaging details:

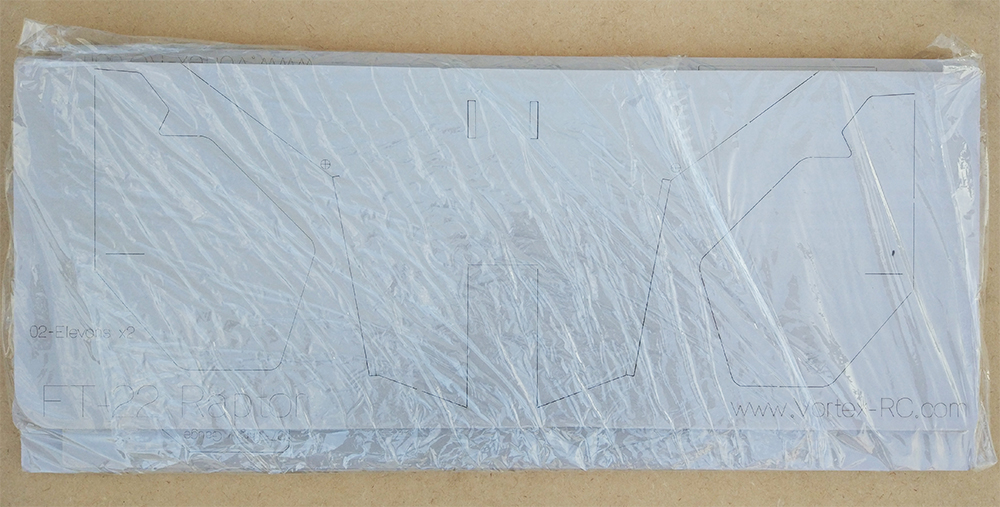

We want the kits to reach you in perfect condition. Laser cut Foamboard sheets are first shrink-wrapped together . Then the Sheet pack + accessories are sealed in a poly bag. Which is further bubble wrapped, which then is packed in a strong 5-ply corrugated box. Then the whole box is put into another 5 ply box to give it maximum safety.

ft-raptor-sheet-dShrink Wrapped and sealed in plastic bag.

Optional Power Pack B+ Includes

  • 1 Nos. Turnigy D2826-10 1400kV Brushless Outrunner Motor
  • 1 Nos.TBS Bulltproof 30A ESC (2S-4S) with 5V 3A BEC

    (2S-4S) with 5V 3A BEC

  • 4 Nos. TowerPro SG90 9Gm Servos.
  • 1 Pair (2Pcs) Gemfan 8×4.5 Slow Fly Propellor
  • 2 Pcs 15Cm Universal Servo Extensions
  • 2 Pcs 30Cm Universal Servo Extensions
  • 2 Pcs 50Cm Universal Servo Extensions
  • 1 Pcs. 15Cm Universal Servo Y Cable
  • 1 Pair (2Pcs) Male/Female XT60 Connectors
  • 3 Pcs. Female Bullet Connectors
  • 4MM Heatshrink Tube approx 10 Cm. Misc Colours.

Specifications

Turnigy D2826-10 1400KV Motor

  • Rpm/V: 1400kv
  • Shaft: 3.17mm
  • Voltage: 2S~3S (7.4v to 11.1v)
  • Weight: 50g
  • Watts: 205w
  • Max Current: 21A
  • ESC: 40A
  • Suggested Prop: 7×4(3S) ~ 9×4.7 (2S)
  • Mounting Hole Bolt Circle: 16mm or 19mm

Additional information

Weight 3 kg
Power Pack Kit

Standard Kit without Power Pack, Power Pack B+
