Bloody Baron Lasercut kit

Bloody Baron Lasercut kit

₹1,900.00 – ₹5,900.00

In stock
0 out of 5

₹1,900.00 – ₹5,900.00

The Bloody Baron is an extremely easy to build kit, that will take less than 3 hours to build  and a true Bank -n– Yank plane to fly. Small, portable and zippy to fly around in small parks and places, the Bloody Baron can be flown with streamers to do some combat flying with friends .

SKU: FT012 Category:
Clear
  • Description
  • FAQ
  • Additional information

Description

Bloody Baron

ft-explorer-banner-mobile-img



The Bloody Baron is an extremely easy to build kit, that will take less than 3 hours to build and a true Bank -n– Yank plane to fly. Small, portable and zippy to fly around in small parks and places, the Bloody Baron can be flown with streamers to do some combat flying with friends .

Can be built in a 3 Channel configuration (Aileron/Elevator/Throttle) for a true Bank-n-yank airplane, or with 4 channel with the rudder. With a powerful motor, Its fully capable of doing most of the basic aerobatics and can be used as a sport trainer airplane.

Put on some streamers, and its ready for some awesome combat flying. Fly with friends and with your local groups, this is one one plane to fly.

Recommended Equipment:

  • Motor: FC 2822-1200KV
  • ESC: 20 amp
  • Battery: 1000 mAH 3s
  • Servos: 9 gram X 2 (X 3 with Rudder)
  • Prop: 8 X 6

Specifications :

  • AUW: 550gms
  • Weight Without Battery: 420gms
  • Wingspan: 29.25in/762mm
  • Length: 24in/610mm
  • Wing Area: 243.89 in2 / 15.7 dm2
  • CG Location: 2.3in/58.7mm from the leading edge of the wing
  • WL: 10.06 oz./ft2 / 32.5 g/dm2
  • WCL: 8.2
  • Control Throws
    • Aileron: 200 Expo: 300
    • Elevator: 200 Expo: 300
    • Rudder: 200 Expo: 300

Whats Included :

  • Fliteboard Pro
    • Precision Laser-cut Fliteboard Pro sheets (4 Nos.)
  • Aeroply Parts
    • Motor Mount
    • Control Horns (4)
  • Pushrods (4pcs) (30cm, 20cm, 16cmx2)
  • Pushrod Linkage Connector (4pcs)
  • Velcro
  • Bamboo Skewers (4)
  • Pushrod guide
  • Paper knife
  • Decals
  • Data Sheet

Bloody Baron | Flite Test

Bloody Baron – BUILD | Vortex-RC

Useful Links

Expert Advice

Keep the speed up when flying this airplane. Fly it low, fly it fast, buzz around and have some fun ! Fly around with friends or chase them around with a simple FPV setup. This plane is just too much fun !

This kit has been based on the Flite Test plans freely available. Several modifications have been made to the original plans to suit the materials available to get the best performance/balance. For more information please read up here :

Kit Includes:

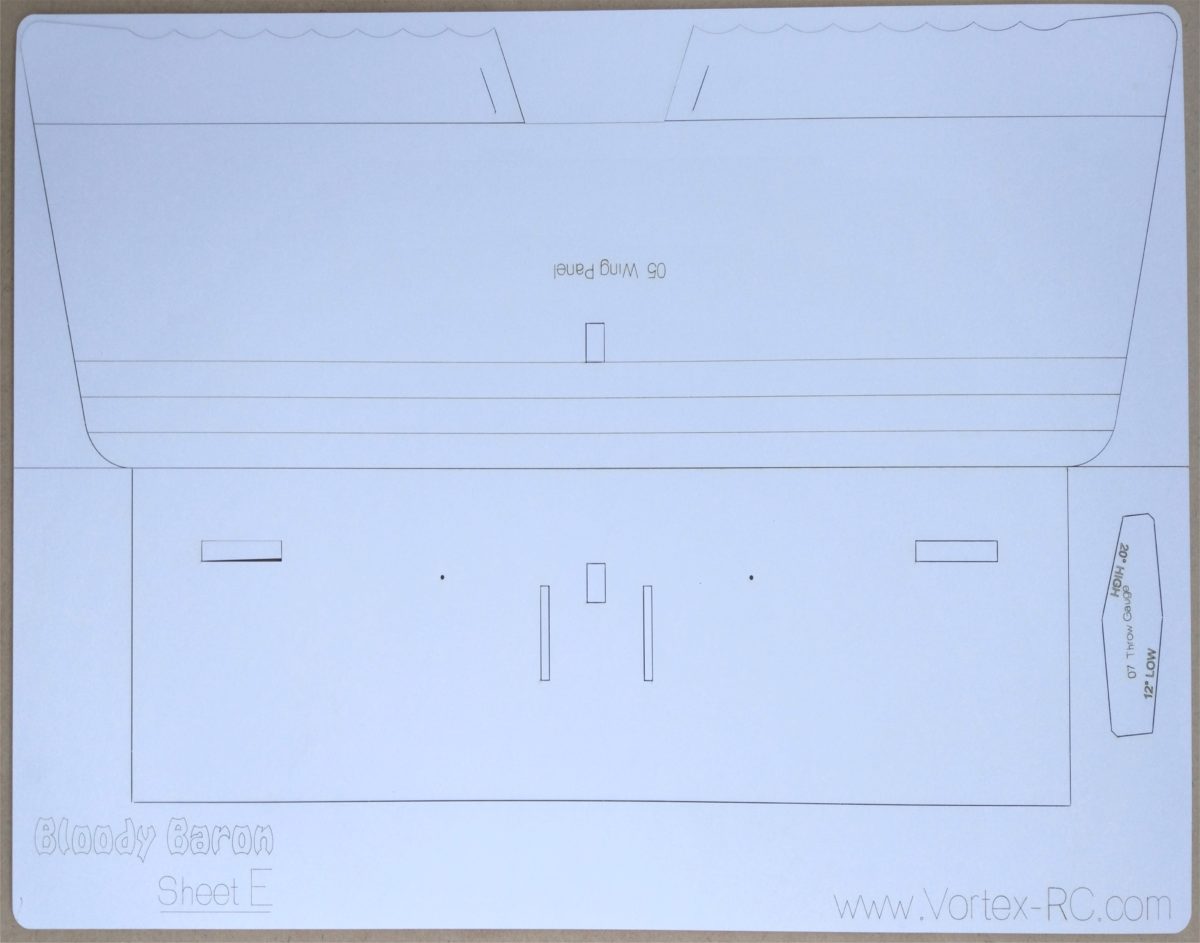

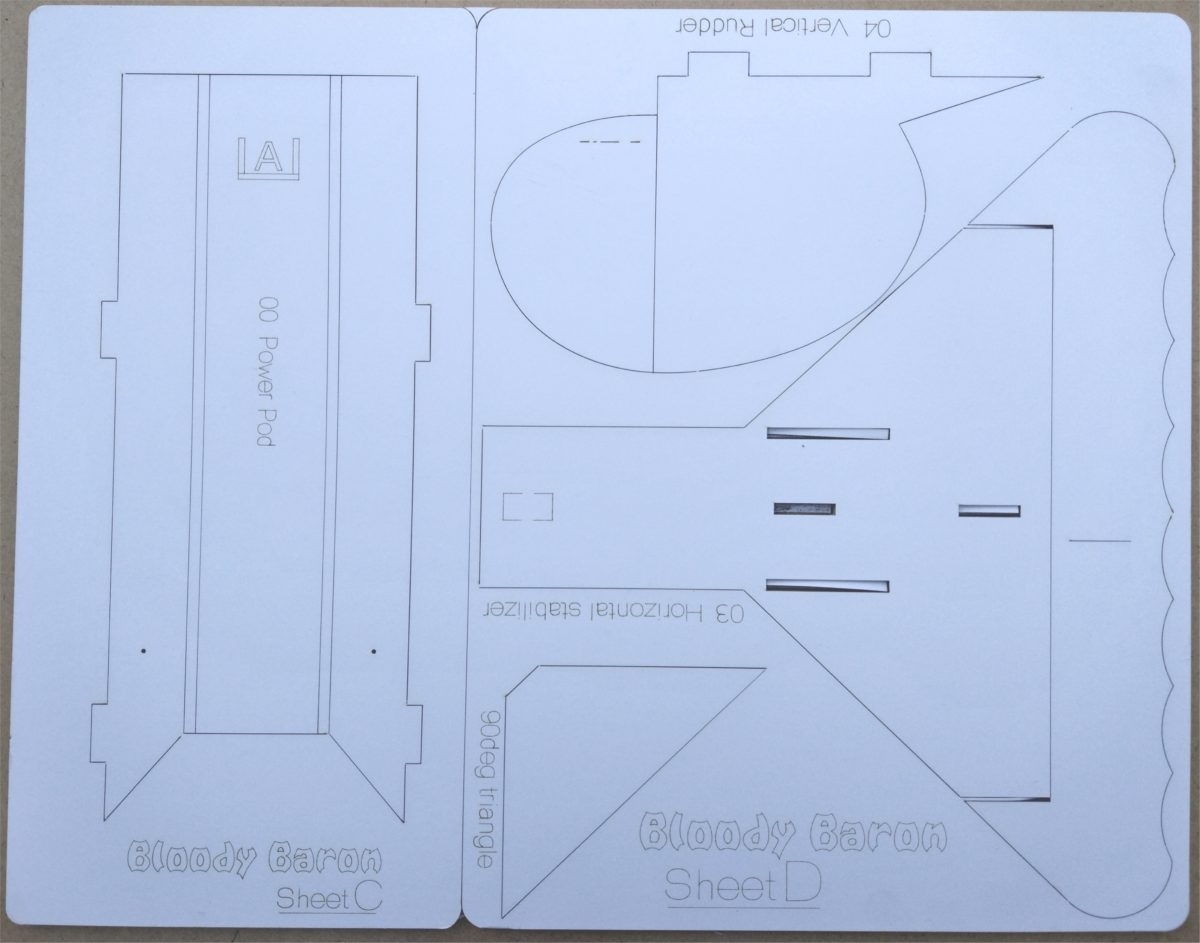

FliteBoard Pro Sheets:

Kit accessories:

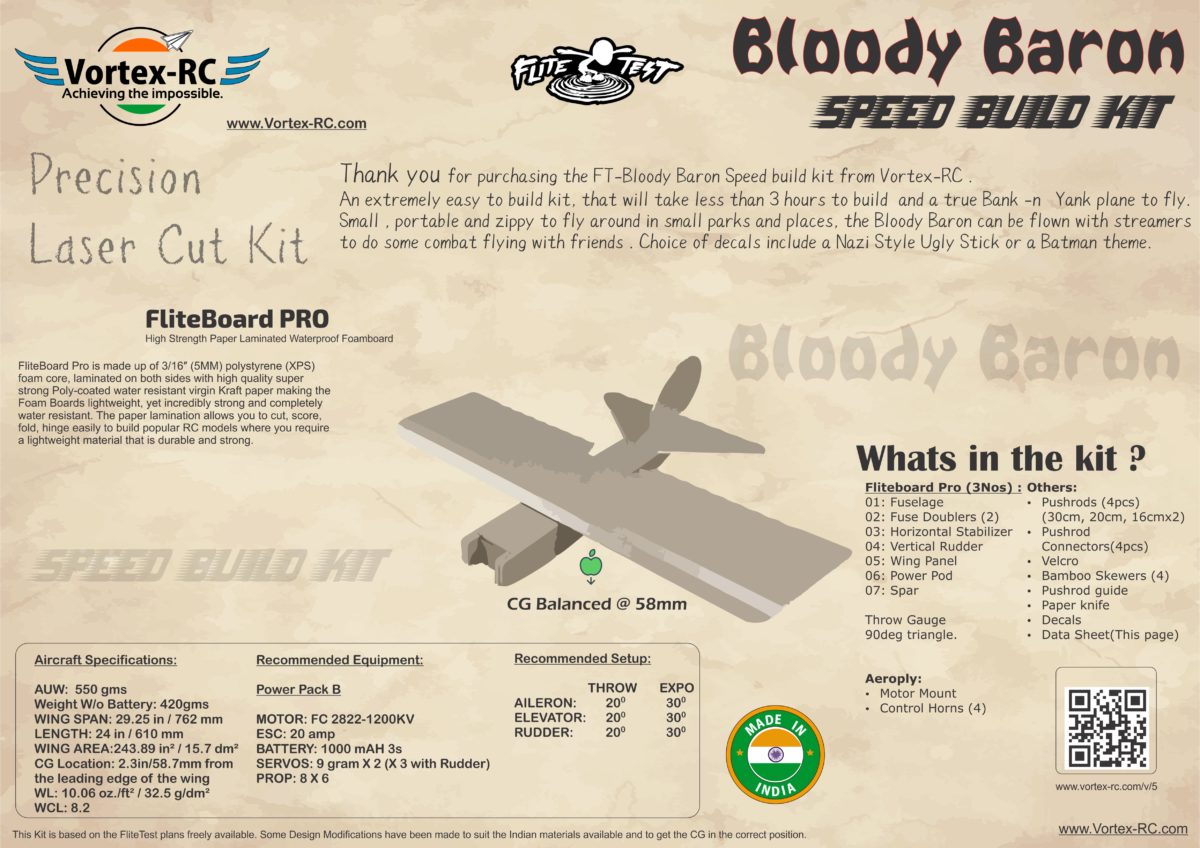

Datasheet

Packaging details:

We want the kits to reach you in perfect condition. Laser cut Foamboard sheets are first shrink-wrapped together . Then the Sheet pack + accessories are sealed in a poly bag. Which is further bubble wrapped, which then is packed in a strong 5-ply corrugated box. Then the whole box is put into another 5 ply box to give it maximum safety.

bloody-baron-5Shrink Wrapped and sealed in plastic bag.

Optional Power Pack B+ Includes

  • 1 Nos. Turnigy D2826-10 1400kV Brushless Outrunner Motor
  • 1 Nos. Hobbyking F-30A 30Amp Brushless Speed Controller

    (2S-4S) with 5V 3A BEC

  • 4 Nos. TowerPro SG90 9Gm Servos.
  • 1 Pair (2Pcs) Gemfan 8×4.5 Slow Fly Propellor
  • 2 Pcs 15Cm Universal Servo Extensions
  • 2 Pcs 30Cm Universal Servo Extensions
  • 2 Pcs 50Cm Universal Servo Extensions
  • 1 Pcs. 15Cm Universal Servo Y Cable
  • 1 Pair (2Pcs) Male/Female XT60 Connectors
  • 3 Pcs. Female Bullet Connectors
  • 4MM Heatshrink Tube approx 10 Cm. Misc Colours.

Specifications

HobbyKing F-30A 30AMP Esc:

  • Constant Current: 30A
  • Burst Current: 40A
  • Battery: 2-4S Lipoly / 5-12s NiXX
  • BEC: 5v / 3A
  • Motor Type: Sensorless Brushless
  • Size: 54 x 26 11mm
  • Weight: 32g
  • Programming Functions:
  • Battery Type: Lipo /NiXX
  • Brake: On / Off
  • Voltage Protection: Low / Mid / High
  • Protection mode: Reduce power / Cut off power
  • Timing: Auto / High / Low
  • Startup: Fast / Normal / Soft
  • PWM Frequency: 8k / 16k
  • Helicopter mode: Off / 5sec / 15sec (Start up delay)

Turnigy D2826-10 1400KV Motor

  • Rpm/V: 1400kv
  • Shaft: 3.17mm
  • Voltage: 2S~3S (7.4v to 11.1v)
  • Weight: 50g
  • Watts: 205w
  • Max Current: 21A
  • ESC: 40A
  • Suggested Prop: 7×4(3S) ~ 9×4.7 (2S)
  • Mounting Hole Bolt Circle: 16mm or 19mm

Additional information

Weight 3.2 kg
Power Pack Kit

Standard Kit without Power Pack, Power Pack B+
