1000mm EPP HD Wing

1000mm EPP HD Wing

2,899.005,749.00

In stock
0 out of 5

2,899.005,749.00

The TuffBirds Chiquita-100 is an EPP FPV Wing designed to take on FPV gear along with an action camera. Has a fully enclosed battery and electronics bay and is able to give flight times of upto 25 minutes.

Clear
  • Description
  • FAQ
  • Additional information

Description

Features:

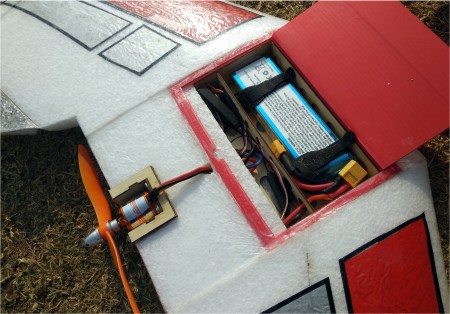

  Enclosed Battery Bay takes upto 5000mah
  Shipped within wing cores
  Precision CNC Hot Wire Cut
  Precision Laser Cut Parts
  Almost unbreakable wings

Specifications :

  • WingSpan: 1000MM
  • All-Up-Weight: ~ 750 gms
  • CG Location: 150 MM back from Nose Tip.

Recommended Equipment:

  • 4-6 Channel Programmable Radio (Tx-Rx)
  • 3300 mah 3S Lipo
  • 30Amp Brushless ESC
  • 2 Nos 9gms Servo
  • Brushless Motor 1200-1500KV
  • 8 inch Propellor
  • FPV Equipment ( Optional )

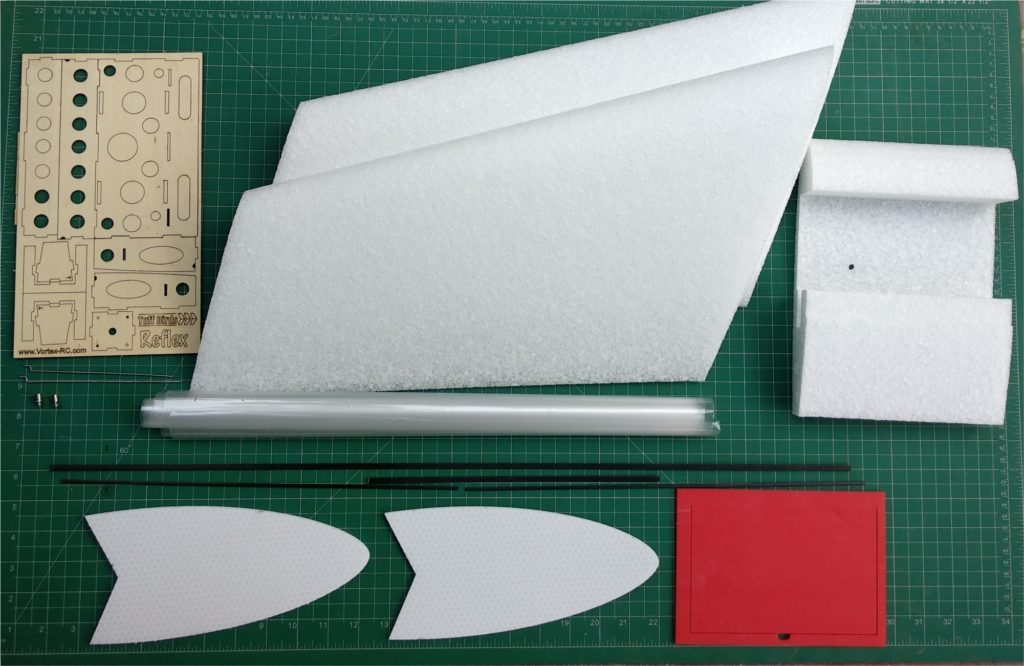

Whats Included :

  • 2 EPP Wing Panels
  • 1 EPP Center Bay

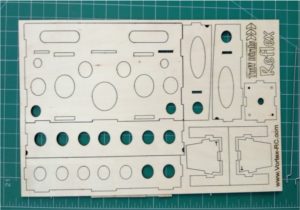

  • 2 mm Laser Cut Aeroply sheet
  • 3MM Laser Cut Motor Mount Adaptor
  • ~500 mm 5x1MM CF Strip
  • ~250 mm 5x1MM CF Strip
  • 2 Nos ~330mm 3x1MM CF Strips
  • Corrugated Plastic 3MM Winglets ( 2Nos )
  • Corrugated Plastic 3MM Hatch
  • 1.5ftx7ft 3 Mil Lamination Film.
  • 2 Nos ~150mm Pushrods
  • 2 Nos Linkage Connectors
  • Paper Knife
  • Elevon Throw Gauge
  • Instructional Manual
  • Balsa Elevons Package (Optional)
  • 2 Nos. 450 MM (18″) long Balsa Elevons
  • 2 Nos. 75 MM long Threaded push rod.
  • 4 Nos. Steel Clevises
  • 2 Nos. Nylon control horns with back plate.
  • 4 Nos. M2 x 15mm Philips head bolts
  • Electronics Package (Optional) includes.
  • 2 Nos. 9 gm Metal Gear Servos
  • 1 Nos. 30Amp Brushless ESC (Speed controller)
  • 1 Nos. A2212/10T 1400KV Brushless Motor
  • 1 Nos. 9×5 Propellor
  • 2 Nos 15cm Servo Extension wire
Kit Includes:

Balsa Elevons Package (Optional)

Electronics Package (Optional)

Camera Mounting Kit (Optional):
Build Videos:
Image Gallery:

Additional information

Weight 3.5 kg
Kit Options

Standard Kit, Standard Kit + Balsa Elevons Package, Standard Kit + Camera Mounting Kit, Standard Kit + Balsa Elevons Package + Camera Mounting Kit

Electronics

No Electronics, With Electronics
